Water System Components

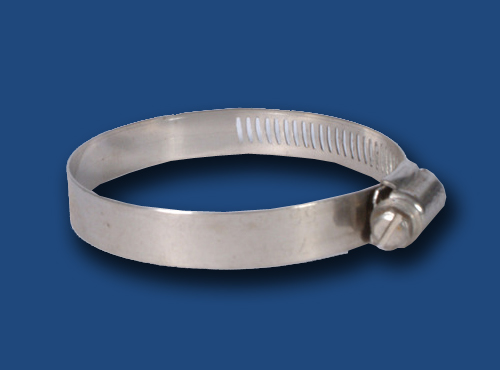

Hose Clamp - Worm Drive:

Specification :

1. All material S.S.304
2. Strip thickness : 0.7mm
3. Strip width : 12.6mm
4. Screw head : 8mm

Hose Clamp - Heavy Duty:

Specification :

1. All material S.S.304
2. Higher strength
3. Higher Strip width provide more grip
4. Bolt suitable to sustain higher force

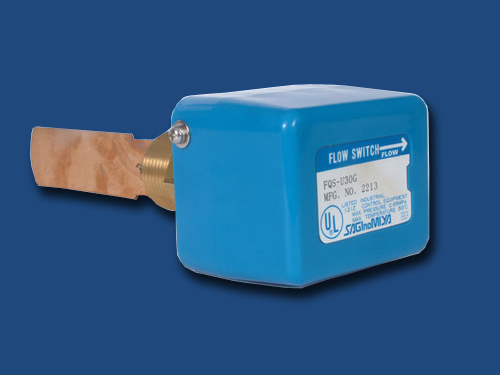

Flow Switches:

Flow Switches offered finds application in meeting the demands of flow control/cut-off protection when flow reaches setting volume. Providing for automatic operations, these switches also allow for adjusting the setting point. Some of its features include suitable for use in mediums like water, oil and other non-hazard liquids, available in different NPT connection standards, comes with maximum working pressure of 10bar, choice of different paddles to fit different diameter pipes, can be made available in different OEM specifications as demanded by the customers.

Specific applications :

1. Superior performance
2. Slim structure
3. Robust construction

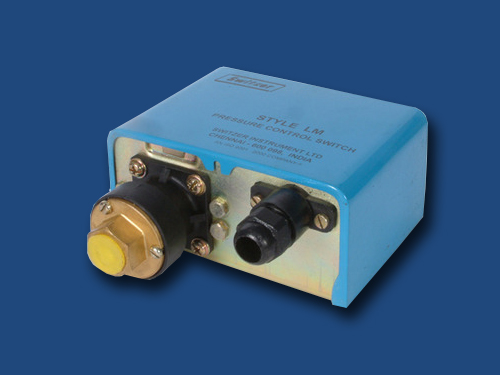

Pressure Switches:

Pressure Switches offered come in precision constructed design and provide support for extended duty applications. Coming in factory set finish, these switches can also be adjusted in field and can be compatible with variety of fluids. Some of its feature include available with different terminations for forming tight seal upon connection, coming with maximum operating pressures of 150 PSI & 250 PSI for 0.5-24 PSI set point range and 25-150 PSI, choice of different base connector thread sizes, can be provided as per OEM specifications as demanded by the customers.

Specifications :

1. Accurate dimension
2. High performance
3. Excellent durability

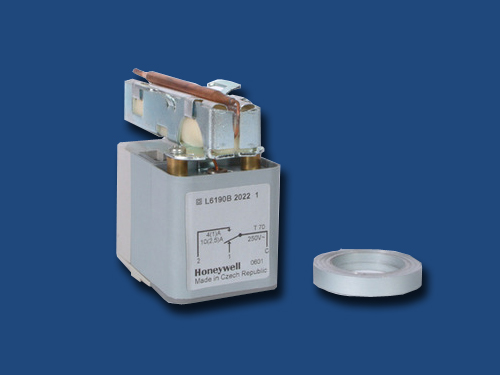

Temperature Switches:

Temperature Switches offered provide suitability for precision managing of temperature while protecting safety against over-temperature situations. These come with action temperature of 20~180 as per the client demands as well as reset temperature that us 20C lower than action temperature. Some of its features include rated voltage of DC24V/AC120V, rated current of 2A, 3A, 6A; suitable to be used for temperature sensors, provide for optimum temperature control and choice of OEM specifications as per the demands of the customers.

Highlighting properties :

1. Light weight
2. Slim structure
3. Elegant designs
4. High thermal resistance

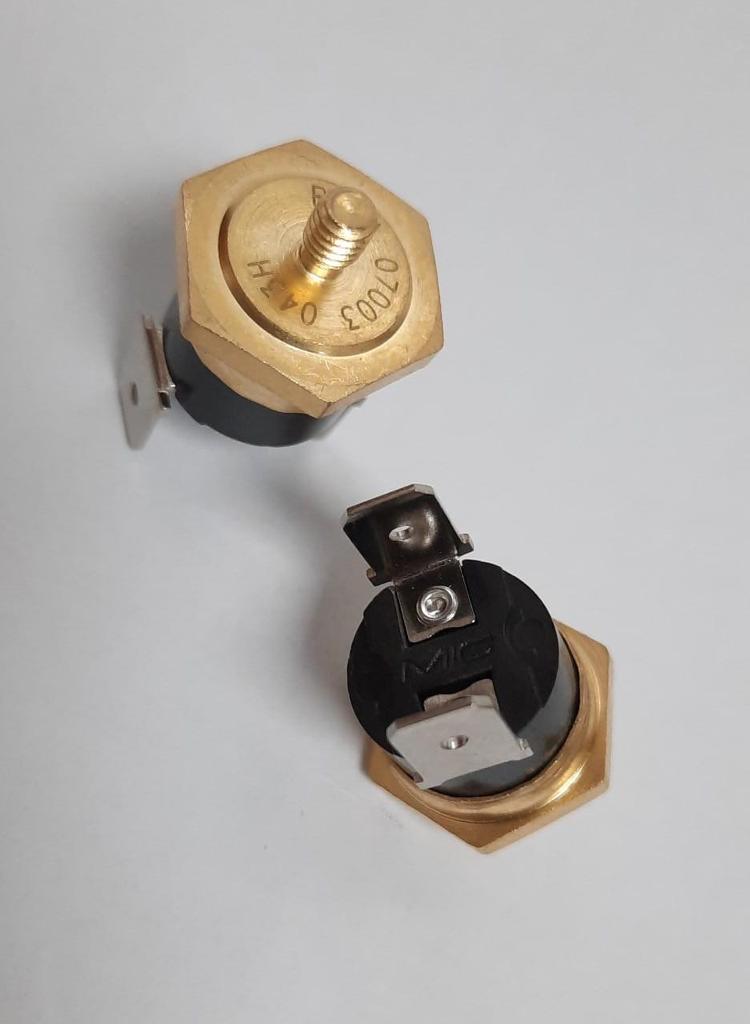

Temperature Sensor:

Temperature Sensor offered comprises assembly type thermal resistance and as display instrument that meets the demands of measuring liquid and gaseous media. Some of the areas these sensors find use in include metallurgy, petroleum, chemical and other industry sectors. Its features include current limiting reactor support for any power size, resistor of any ohm value and wattage and others. These sensors are backed by latest technology support so as to provide for consistent and accurate performance results. We can also offer these temperature sensors in OEM specifications as demanded by the customers.

Specifications :

1. Moulded case circuit breaker with magnetic trip setting 360A.550A,850A,1050A
2. Fast acting fuse for protection of semiconductor device 800A,1000A,1250A,1500A
3. Mov 575V, 660V
4. Current limiting reactor (CLR) suitable for any size of power
5. DI/DT Reactor
6. High Frequency Transformer (HFT)
7. Resistor of any ohm value and wattage
8. Capacitor for snubber circuit and dc power supply
9. Dc power supply assembly
10. Potential transformer, control transformer, current transformer
11. Temperature switch, temperature sensor, pressure switch, flow switch, pressure gauge,temperature gauge

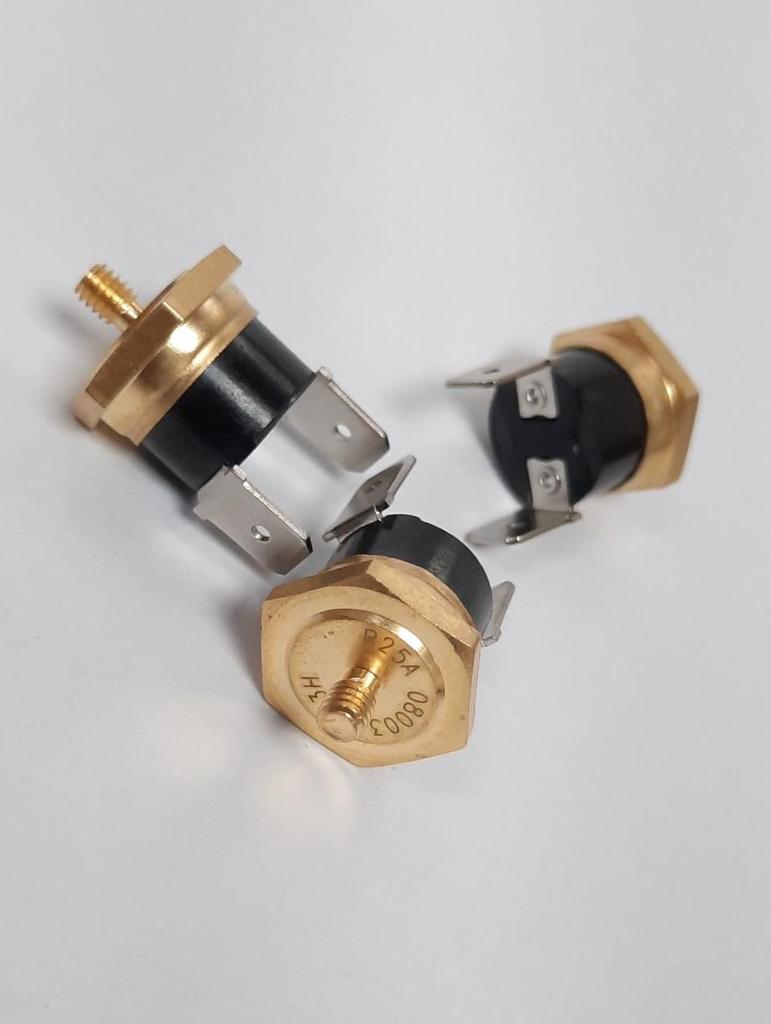

Temperature Sensors:

Temperature Sensors offered provide for superior working accuracy of ±1°C as well as have superior temperature range of -40°C~+300°C. Further, these sensors can be provided by us in different channel choices as well as short display response time of 1 sec. Some of its features include measurement sampling rate of >2Hz, provides suitability for measuring of liquid and gaseous media, also allows measuring of solid surface temperature, suitable for use in industry sectors petroleum, chemical, metallurgy, textile and others; support displaying on display boards temperature levels of electrical and mechanical devices, provides for accurate results, allows for high thermal insulation support among others.

Specific properties :

1. Light weight
2. Attractive designs
3. Accurate results

Hose Clamp :

Hose Clamp offered can be made available by us in different finish specifications to choose from. These clamps are developed using carbon steel/stainless steel material finish as well as in any defined sizes as specified by the customers. Some of its features include available in different material grades like 400/300 and others; band width options of 8mm/10mm and others; smooth finish of outer band edge that prevents hose damages, precise stamping molding support, allows for uniform stress and superior sealing ability, suitable for use in induction furnaces and pipeline systems, offers superior dimensional accuracy, corrosion resistance, superior resistance to weathering condition and others.

Specific features :

1. High tensile strength
2. Superior resistance to weathering condition
3. Customized specification
4. Superior finish

Hose Clamp - Wire Type :

Specification :

1. All material S.S.304
2. Higher strength
3. Wire size as per table
4. Screw head as per table

Carbon Free Rubber Hoses

the electrical and electronics devices. All our hoses and pipes are designed using high grade raw materials to provide high flexibility. These electrical accessories are widely acclaimed for the notable properties such as high flexibility, light weight. We endeavor to provide most reliable and genuine products at the most reasonable price.

In the steel, metal and foundry industries, Induction equipments are being used to melt or heat different metals. This induction furnaces operate at high power, high voltage and high current. This high electrical power passes through semiconductor devices, capacitor, inductor, several copper busbar, water cooled cable, induction coil. As very high current passes through all different component it get heated up. to cool this component we have to provide water cooling or in other sense we have to pass water through these component, But this component carry very high voltage so we have to flow non conductive-distilled water and also the rubber hose, which used to supply water must be non conductive.

Specification :

1. Rubber must be carbon free
2. Non conductive, very low leakage current at high voltage
3. Must withstand operating pressure
4. Long durability--synthetic rubber having long durability
5. Operating temperature more than 120 °C
6. Good flexibility to accommodate small band
7. Good abrasive strength to protect from external wear and tear
